- Before
- Watches the outage map 16:00–00:00 with 11 crews to send, and builds incidents by hand from the callers' words and pins on a map.
- Now
- Sees which houses are really dark before anyone is sent, with the likely device and its proof.
One blown fuse, forty trouble calls and a single crew sent
One weekday evening at peak, in one district of a utility's network. At 19:41:52 a fuse on a pole near a primary school blows, and the lateral behind it drops seven transformers. Here is what happens next, screen by screen, in the working solution.
A worked example on sample data. Names, IDs and figures on the screens and in this section come from the demo.
- 0119:42:10

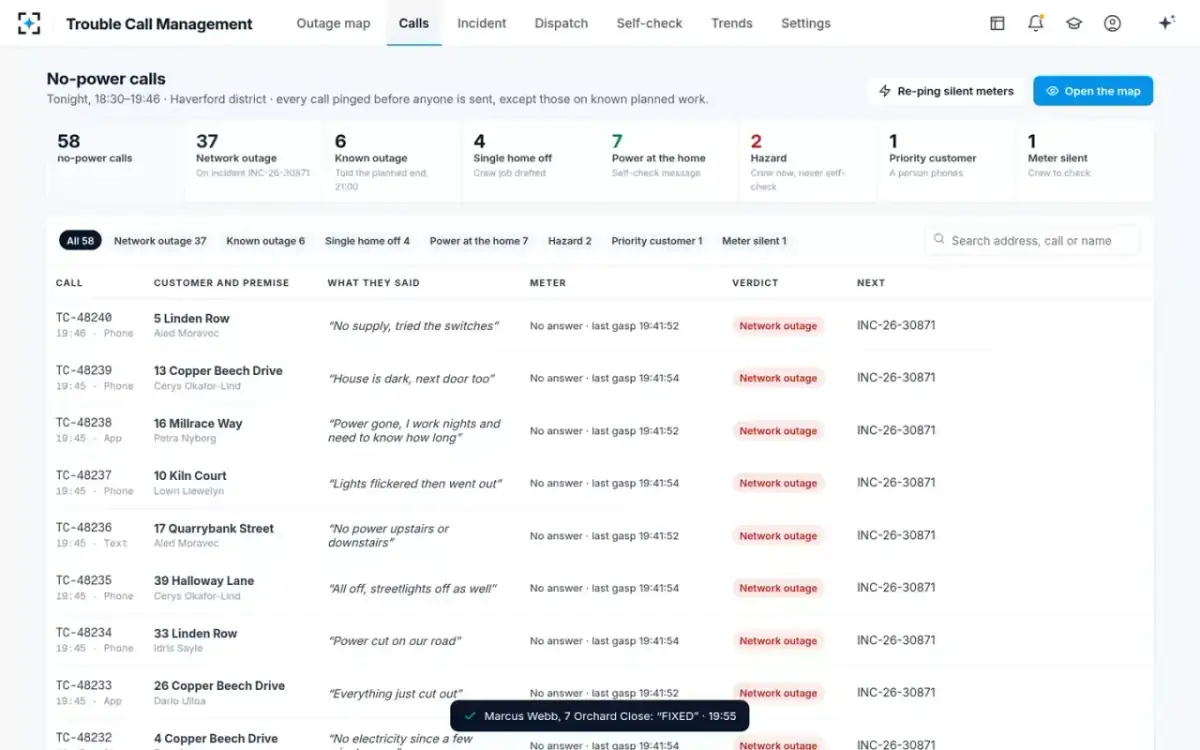

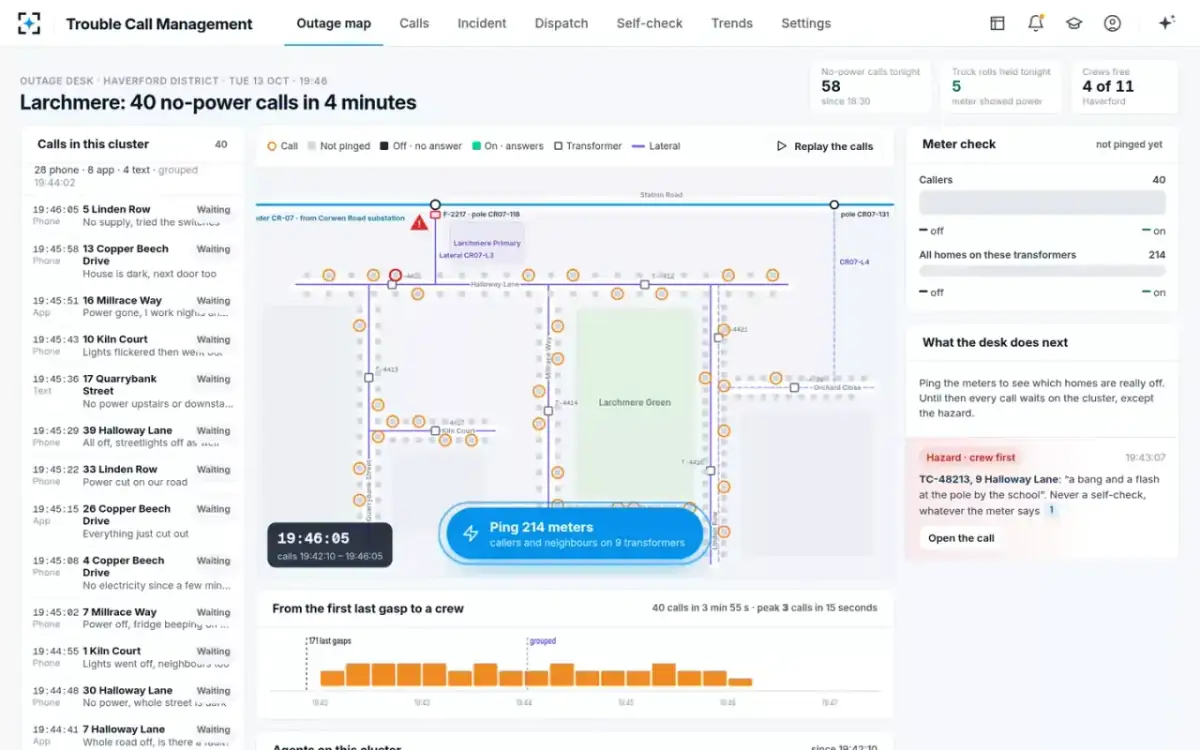

Forty no-power calls in four minutes, on the map as they arrive
Outage desk dispatcherThe dispatcher has the evening shift on the outage desk. The first call lands at 19:42:10 and by 19:46:05 there are 40 from the same neighborhood: 28 phone, 8 app and 4 text. Each call is a ring on the outage map, drawn on the feeder from its substation, with its laterals, the fuse and the nine transformers around the calls. At 19:44:02 the Call grouper opens a cluster on the lateral: 3 calls inside 400 m and 10 minutes, and no incident open there in the outage system.
“40 no-power calls in 4 minutes” · 58 no-power calls tonight since 18:30
- 0219:43

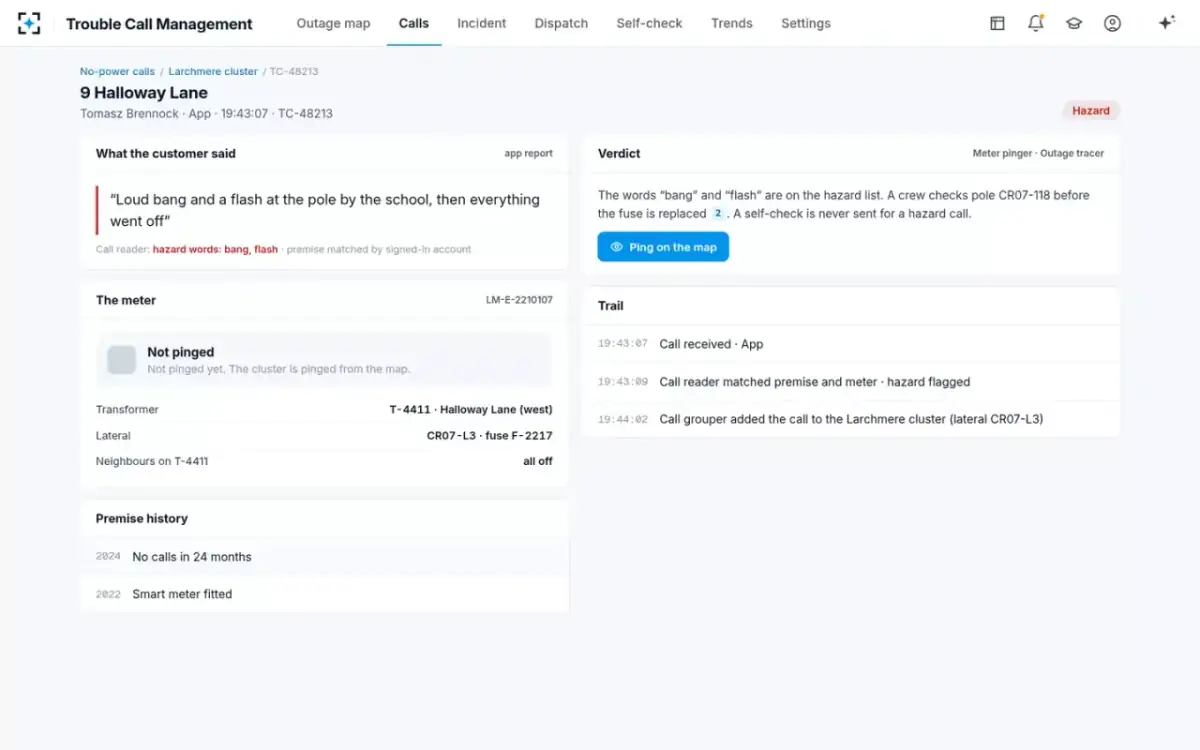

One call heard a bang at the pole: a hazard, crew first
Call readerA customer reports from the app: “Loud bang and a flash at the pole by the school, then everything went off.” The Call reader matches the premise and the meter, finds the hazard words “bang” and “flash”, and flags the call to the dispatcher at once. Whatever that meter says later, this call is not answered with a self-check message.
“The words “bang” and “flash” are on the hazard list. A crew checks the pole before the fuse is replaced. A self-check is never sent for a hazard call.”
- 0319:46:20

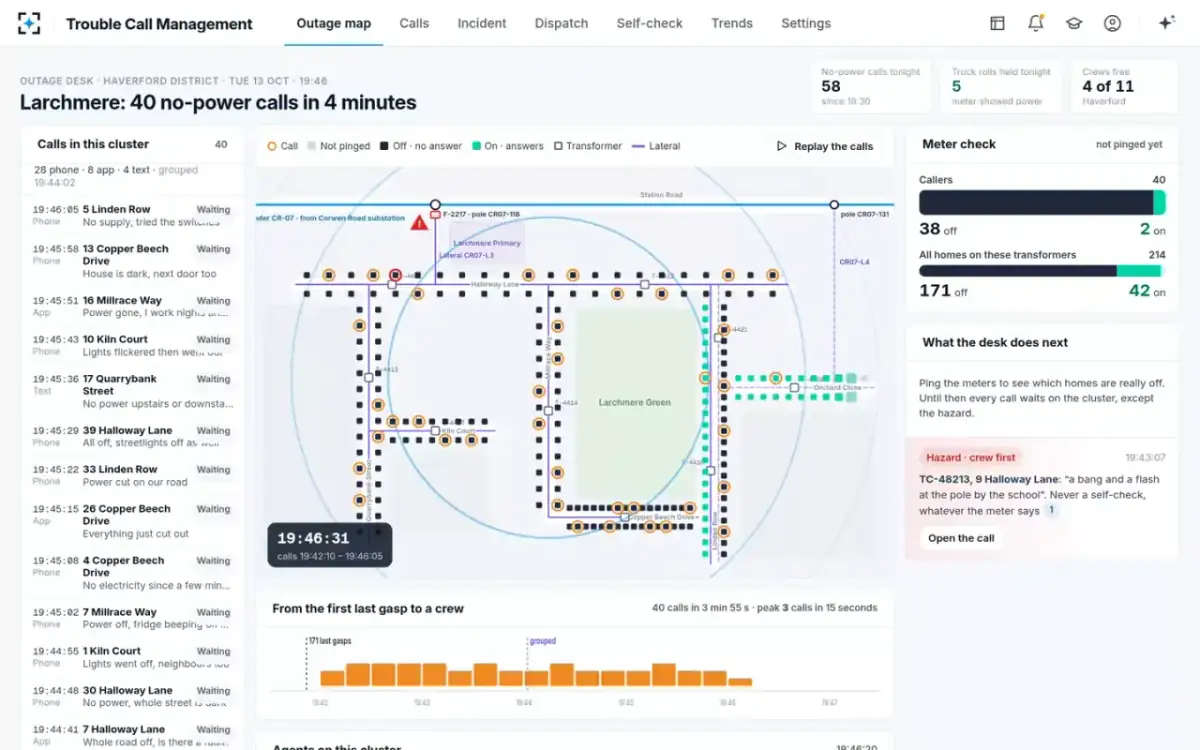

Ping 214 meters: the callers and each neighbor
Outage desk dispatcherBefore anyone is sent, the dispatcher presses Ping 214 meters: the callers and their neighbors on 9 transformers. The Meter pinger sends on-demand pings through the head-end, with 3 retries per meter at most, and the wave runs out from the calls across the streets.
“Ping the meters to see which homes are really off. Until then every call waits on the cluster, except the hazard.”
- 0411 seconds later

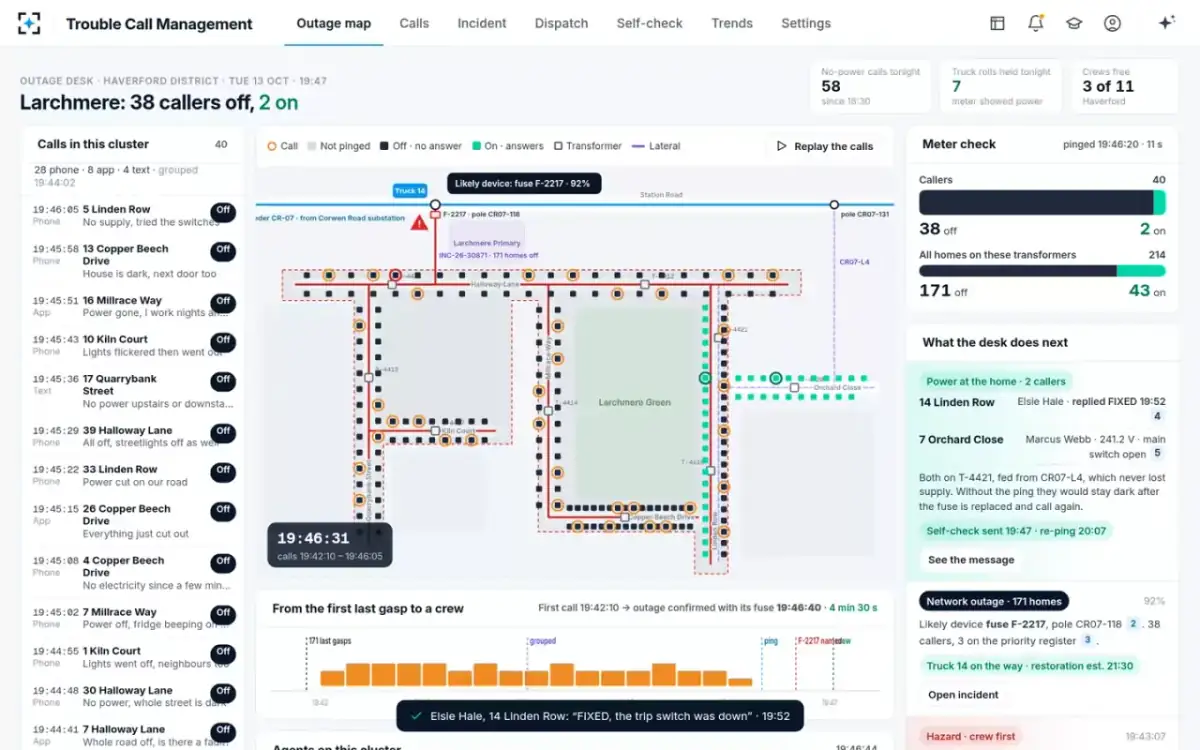

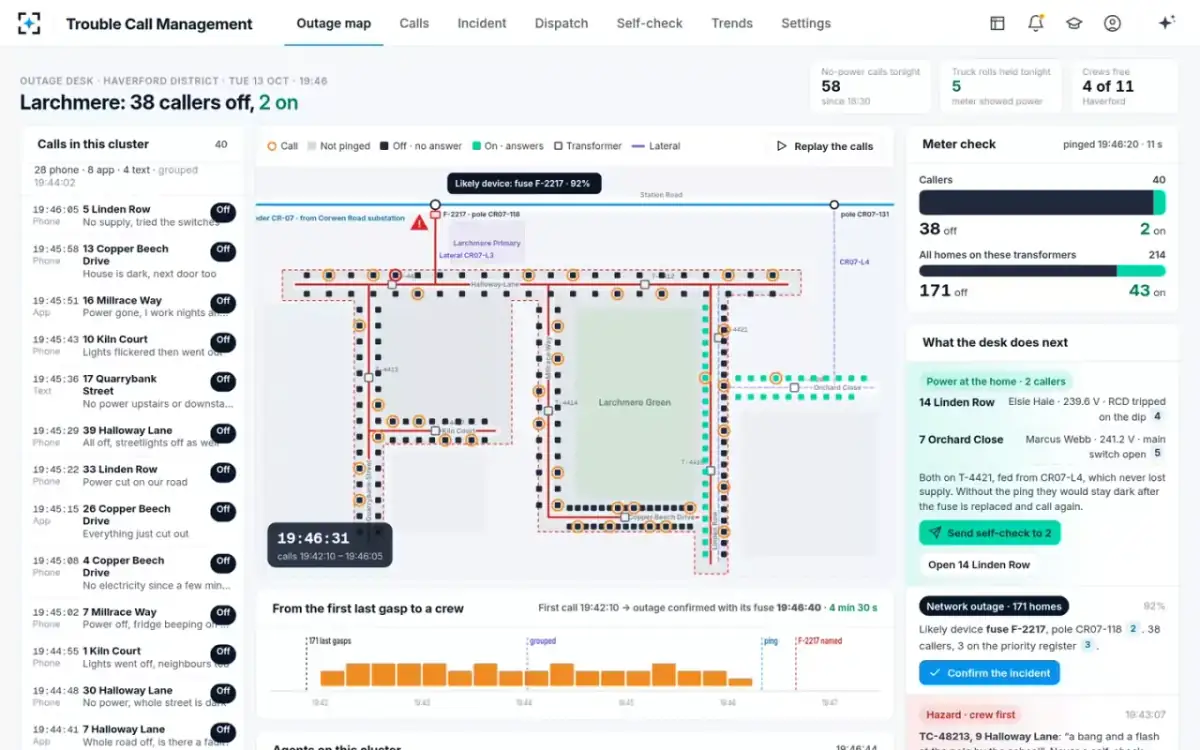

38 callers off, 2 on, and one fuse behind the dark homes
Meter pinger and Outage tracerAt 19:46:31 the answers are in: of 214 homes, 171 are off and 43 are on; of 40 callers, 38 are off and 2 are on. The dark homes trace a single lateral back to one fuse, and the Outage tracer names it the likely device at 92%. From the first call at 19:42:10 to the outage confirmed with its fuse at 19:46:40 took 4 minutes 30 seconds.
“Likely device: the lateral fuse · 92%” · “First call 19:42:10 → outage confirmed with its fuse 19:46:40 · 4 min 30 s”
- 05The agents' run

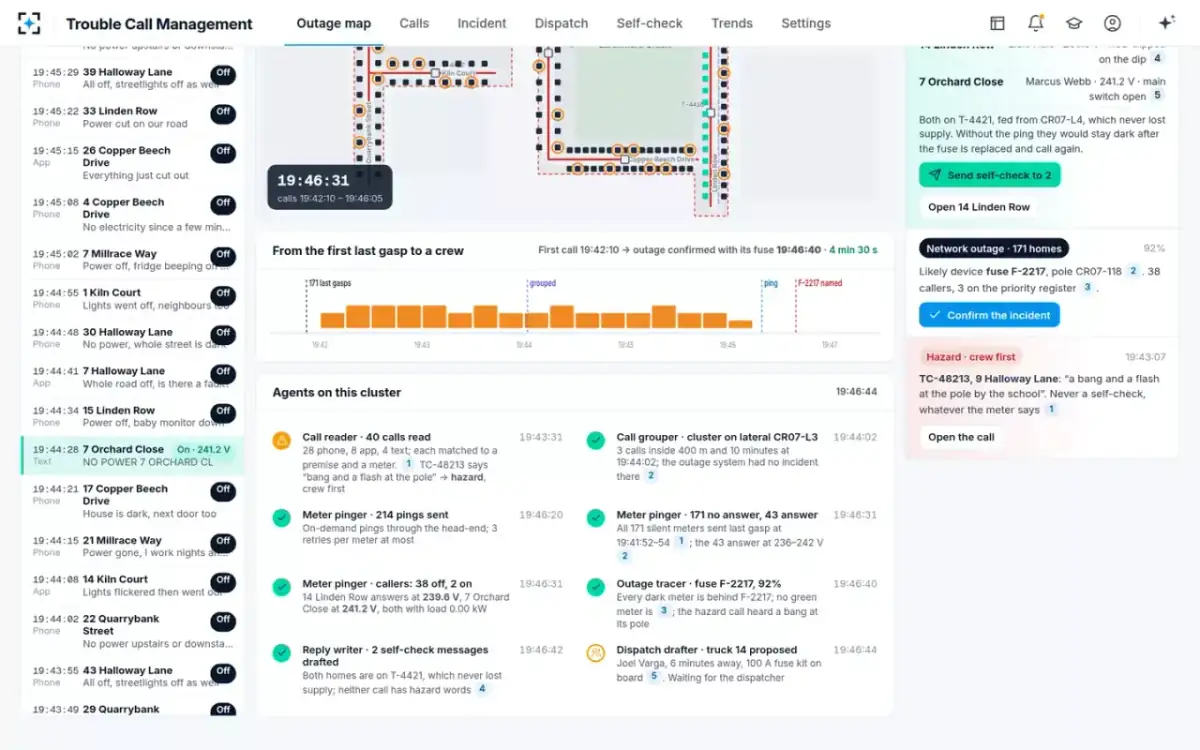

Each step on the record, with its proof
Six agentsThe run on the cluster shows each agent's step and its time. All 171 silent meters sent last gasp at 19:41:52–54; the 43 that answer read 236–242 V. Each dark meter is behind the fuse and no answering meter is. The Reply writer drafts 2 self-check messages, and the Dispatch drafter proposes the nearest troubleman, 6 minutes away with a 100 A fuse kit on board, and waits for the dispatcher.
“Dispatch drafter · nearest truck proposed … Waiting for the dispatcher”
- 06Across the road

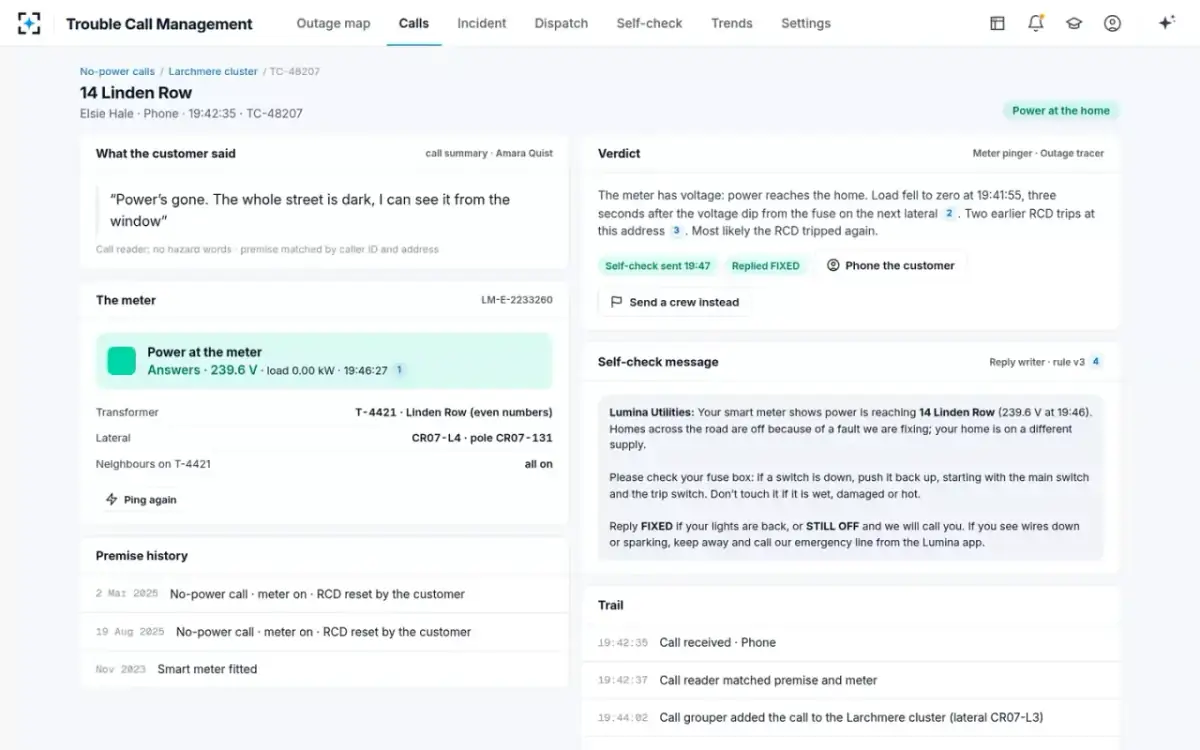

The street is dark, but this meter answers at 239.6 V
CustomerA customer called at 19:42:35: “Power’s gone. The whole street is dark, I can see it from the window.” The meter answers at 239.6 V. The home is on a transformer fed from a neighboring lateral, which kept its supply. The load fell to zero at 19:41:55, three seconds after the voltage dip from the blown fuse, and the premise history shows two earlier RCD resets here last year. Most likely the RCD tripped again.
Without the ping, the home would stay dark after the fuse is replaced, and the customer would call again.
- 07Why that fuse

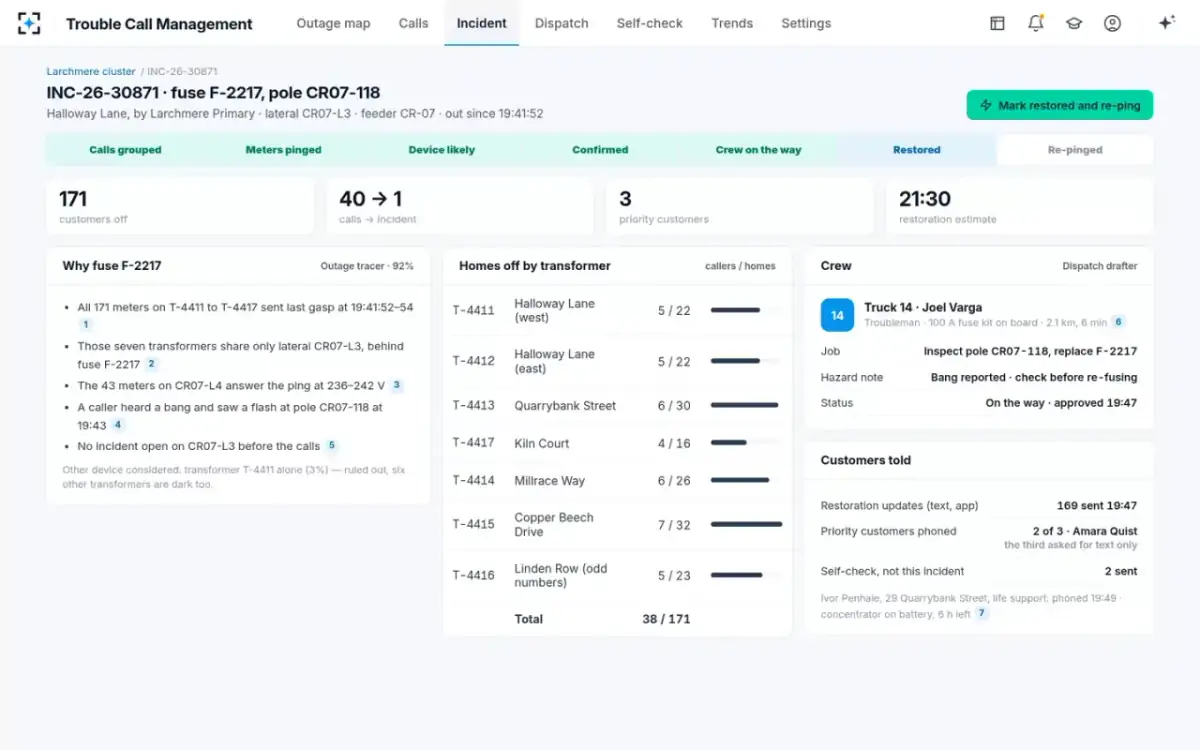

One incident for 171 customers, with the evidence
Outage tracerThe incident groups 40 calls: 171 customers off, 3 on the priority register. The Outage tracer lists its reasons: the last gasps from all seven transformers, the seven sharing only one lateral, the 43 meters on the neighboring lateral answering, the bang at the pole, and no incident open on the lateral before the calls. It also shows what it ruled out: the first transformer alone, at 3%, because six other transformers are dark too.
Below 80% confidence the Outage tracer names the area, not a device. The dispatcher confirms the device.
- 0819:47
Two self-checks sent, the incident confirmed, the crew approved
Outage desk dispatcherThe dispatcher sends the self-check to the two homes with power, confirms the incident and approves the truck, with a restoration estimate of 21:30. 169 customers get the restoration update by text and app; a contact center agent phones 2 of the 3 priority customers, and the third asked for text only. At 19:52 the customer across the road replies: “FIXED, the trip switch was down.” The second home with power replies FIXED at 19:55.
“FIXED, the trip switch was down” · 19:52
- 09After the message

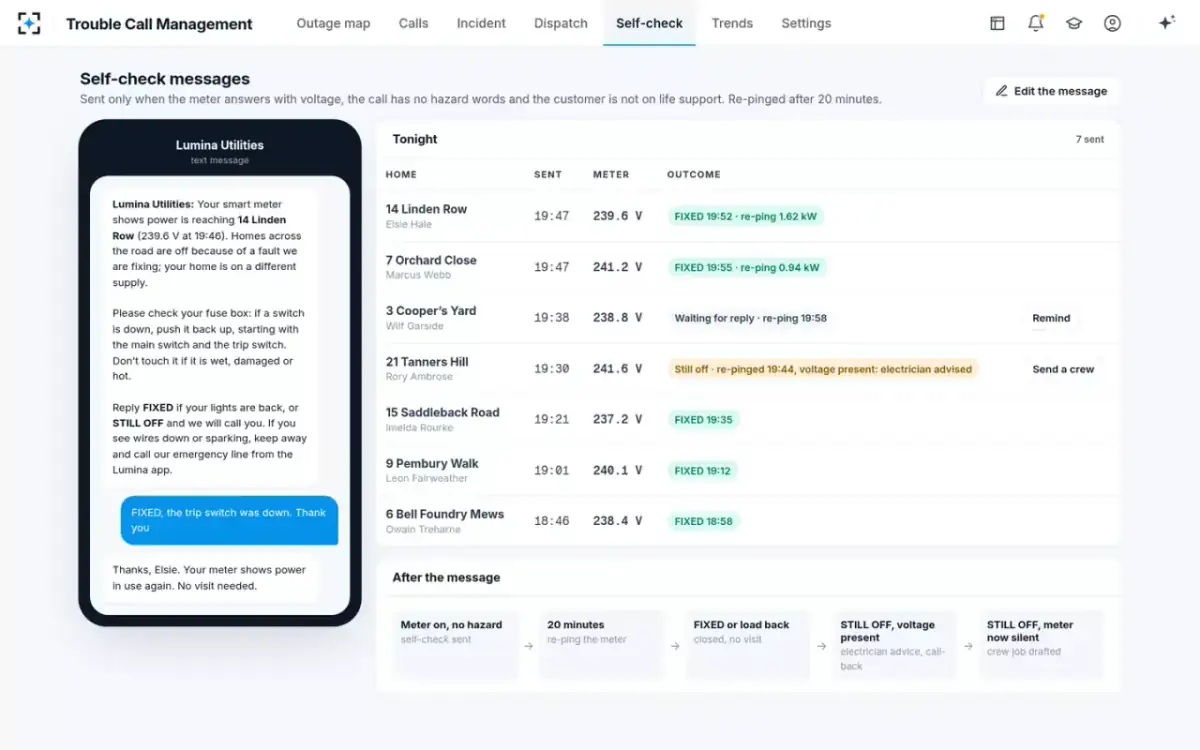

The self-check, then a re-ping 20 minutes later
Reply writer and Meter pingerThe message tells the customer their smart meter shows power reaching the home, asks them to check the fuse box (main switch and trip switch first, and not to touch it if it is wet, damaged or hot) and to reply FIXED or STILL OFF. Twenty minutes later the meter is pinged again: load back closes the call with no visit; still off with voltage present brings electrician advice and a call-back; a meter that has gone silent gets a crew job drafted.
Sent only when the meter answers with voltage, the call has no hazard words and the customer is not on life support.
- 10Tonight

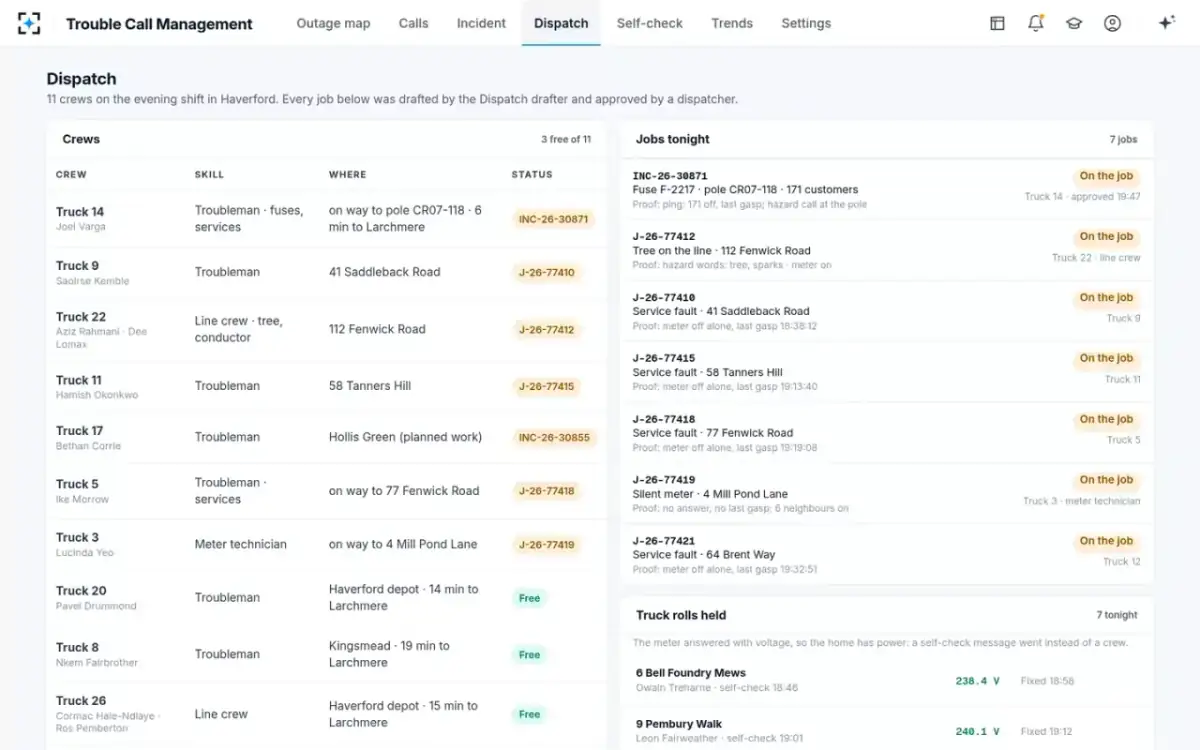

One crew to the fuse, seven truck rolls held
TroublemanThe troubleman is on the way to the pole to inspect it and replace the fuse, with the hazard note “Bang reported · check before re-fusing”. Each job on the crew board carries its proof: a ping with 171 off and last gasp, hazard words with the meter on, a meter off alone, a silent meter with its neighbors on. Seven homes whose meter answered with voltage got a self-check message instead of a crew.
“The meter answered with voltage, so the home has power: a self-check message went instead of a crew.”
